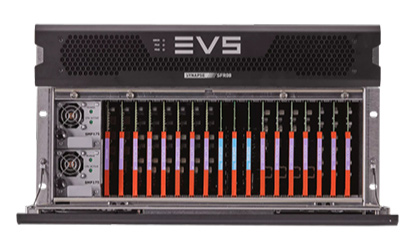

Synapse modules approaching End of Life
| Scroll down to learn more, including remaining Synapse modules |
Synapse Module Availability for Your Configuration
Synapse continues to support a wide range of media infrastructure workflows around the world. As part of the natural lifecycle of the platform, the availability of certain modules is evolving over time.
A limited number of modules have already reached end of sales, mainly due to component availability and remaining stock levels. If your current system requires additional modules for expansion or spare inventory, we recommend reviewing the list of available modules in the current catalog.
Many Synapse modules remain available and continue to support both system expansions and new configurations.
Please note that end of sales for specific modules does not mean end of support. EVS will continue to provide full service and assistance for Synapse systems according to the defined support lifecycle, ensuring continuity and operational peace of mind for our customers.
Synapse modules still available
| Analog audio distribution | AAD08 | Dual channel 1 to 8 analog audio distribution amplifier |
| Analog video distribution | CDV07 | Analog video (black burst / Tri-level) distribution amplifier (Word Clock DA for high impedance circuits) |
| CDV08 | Analog video distribution amplifier with cable equalizer | |
| CDV29 | Reference (black burst / Tri-level) distribution amplifier with 9 outputs and Synapse reference inputs | |
| Audio A/D conversion | ADC44 - ADC48 | 4 or 8 channel 24-bit audio A/D converter with analog and AES/EBU inputs |
| Audio D/A conversion | DAC44 - DAC48 | 4 or 8 channel 24 bit audio D/A converter with analog and AES/EBU outputs |
| Embedding | GEB400 - 440 - 800 - 840 - 880 | 3Gb/s, HD, SD basic analog and/or digital audio embedder |
| GEB500 - 550 - 900 - 950 - 990 | 3Gb/s, HD, SD enhanced analog and/or digital audio embedder with ‘TWINS’ function | |
| De-embedding | GDB400 - 440 - 800 - 840 - 880 | 3Gb/s, HD, SD basic channel analog and/or digital audio de-embedder |
| GDB500 - 550 - 900 - 950 - 990 | 3Gb/s, HD, SD enhanced analog and/or digital audio de-embedder with ‘TWINS’ function | |
| Re-embedding | GRB100 | 3Gb/s, HD, SD dual SDI embedded domain shuffler and re-embedder with S2020 insertion |
| GRB550 - 590 - 950 - 990 | 3Gb/s, HD, SD digital or analog audio re-embedder with shuffler and S2020 metadata insertion | |
| Embedded audio processing | GAD100 | 3Gb/s, HD, SD embedded domain audio description and voice-over processor |
| GJA420 - 440 - 840 - 880 | 3Gb/s, HD, SD embedded domain Loudness controller based on Jünger Audio algorithms | |
| GRF050 ~ 990 | Dual 3Gb/s, HD, SD embedded domain shuffler with MADI I/O and analog of digital audio I/O | |
| Digital audio distribution | DAD08 | Digital (AES/EBU) audio distribution amplifier with transformer coupled outputs |
| DWC08 - DWC18 | Word Clock distribution amplifier with optional video reference locked Word Clock generator | |
| Digital video distribution | GDR108 | 3Gb/s, HD, SD 1 to 8 distribution amplifier with reclocked outputs (ASI/DVB compatible) |
| GDR216 | 3Gb/s, HD, SD dual input distribution amplifier with 16 reclocked outputs (ASI/DVB compatible) | |
| GDR416 | 4K, 12Gb/s, 3Gb/s, HD and SD 4 input distribution amplifier with 4 reclocked outputs per channel | |
| SDR108 | SD 1 to 8 distribution amplifier with reclocked outputs (ASI/DVB compatible) | |
| SDR216 | SD dual input distribution amplifier with 16 reclocked outputs (ASI/DVB compatible) | |
| UDR108 | UHD, FHD, HD and SD distribution amplifier with 8 reclocked outputs (single wire 12Gb/s SDI) | |
| Frame synchronizers | 2GF100 - 110 | Dual channel 3Gb/s, HD, SD frame synchronizer with optional audio shuffler |
| GFS010 | 3Gb/s, HD, SD basic frame synchronizer | |
| GFS100 - 110 | 3Gb/s, HD, SD frame synchronizer with optional audio shuffler | |
| Integrity checking and probing | GIX100 - 110 | Dual channel 3Gb/s, HD, SD integrity checking probe with optional clean audio switch-over function |
| GIX170 | Dual channel 3Gb/s, HD, SD integrity checking probe with SCTE104 (WHP296) compatibility | |
| Graphics insertion and keying | GDK100 | Dual background input 3Gb/s, HD, SD downstream keyer |
| GDK200 | 3Gb/s, HD keyer, mixer with dual 2D DVE | |
| GLI100 | 3Gb/s, HD, SD preset based dual logo inserter | |
| Format conversion - down | 2GS100 - 110 | Dual channel 3Gb/s, HD down-converter with color corrector and optional cross input audio shuffler |
| GDS010 | 3Gb/s, HD, SD basic down-converter/synchronizer | |
| GDS100 - 110 | 3Gb/s, HD, SD down-converter/synchronizer with optional audio shuffler | |
| U4D100 | 4K Ultra HD (3840 x 2160) 4 wire to 1080p down converter | |
| Format conversion - up | 2GU100 - 110 | Dual channel 3Gb/s, HD up-converter with color corrector and optional cross input audio shuffler |
| GSU010 | 3Gb/s, HD, SD basic up-converter/synchronizer | |
| GSU100 - GSU110 | Gb/s, HD, SD up-converter/synchronizer with optional audio shuffler | |
| GSU150 - GSU160 | 3Gb/s, HD, SD up-converter/synchronizer with side curtain input and optional audio shuffler | |
| U4U100 | 1080P to 4K Ultra HD (3840 x 2160) 4 wire up converter | |
| Format conversion - up/down/cross | 2XG100 - 110 | Dual channel 3Gb/s, HD, SD up/down/cross-converter/synchronizer with optional audio shuffler |
| GXG100 - 110 | 3Gb/s, HD, SD up/down/cross-converter/synchronizer with optional audio shuffler | |
| GXG150 - 160 | 3Gb/s, HD, SD up/down/cross-converter/synchronizer with side curtain conversion and optional audio shuffler | |
| GXG500 - 510 | High end 3Gb/s, HD, SD up/down/cross-converter/synchronizer with optional audio shuffler | |
| UXU500 - 510 | 4K (UHD) format converter with LUT based color space and dynamic range converter | |
| Format conversion - transmission | GXT100 - 110 | 3Gb/s, HD and SD input, frame synchronizer, up/down/cross-converter, embedder and de-embedder |
| HXT150 | Dual HD and SD frame synchronizer, up/down/cross-converter and (de)embedder with second channel offset delay (stat multiplex optimization) | |
| 4K processing | U4T100 - 140 | 4K (3840 x 2160) Ultra HD 4 wire toolbox with optional Dolby E processing |
| U4T200 - 240 | 4K (3840 x 2160) Ultra HD toolbox with LUT based color space and dynamic range converter with optional Dolby E processing | |
| Bridging and VBI insertion | GNS600 | SCTE104 VANC inserter and Ethernet data-bridge for 3Gb/s, HD and SD SDI inputs |
| HNS400 | HD, SD, CVBS VBI/VANC line inserter/swapper/transcoder (databridge) | |
| INS400 | SD, CVBS VBI line inserter/swapper (databridge) for composite and SDI inputs | |
| Legalization | GDL200 | Dual input 3Gb/s and HD RGB legalizer and framesync with preview output and QS bus handling |
| 2TG100 | Dual 3Gb/s, HD and SD test pattern generator with embedded audio signals and Quad Speed ADD-ON audio I/O | |
| GMD100 | 3Gb/s, HD, SD SDI medium time delay with automatic tracking function | |
| ASI/DVB | TSX20 - 30 | Triple/Dual channel enhanced ASI/DVB monitor |
Synapse modules which have reached end-of-sales
| Embedded Dolby Processing | GED100 | 3Gb/s, HD, SD embedded domain Dolby E to Dolby Digital (plus) transcoder + audio shuffler |
| GED130 | 3Gb/s, HD, SD embedded domain Dolby E to Dolby Digital (plus) transcoder with audio shuffler and audio description processor | |
| GEE200 - 230 | 3Gb/s, HD, SD embedded domain Dolby E/D/D+ decoder to Dolby E encoder with optional audio description | |
| GPD100 | 3Gb/s, HD, SD embedded domain PCM to Dolby Digital (plus) encoder with audio shuffler | |
| GPD130 | 3Gb/s, HD, SD embedded domain PCM + AD to Dolby Digital (plus) encoder with audio shuffler and audio description processor | |
| Embedded audio processing | 2AI48 | Dual AES/EBU back-up switcher with integrity checking |
| ADL24 | Analog audio tracking delay with offset | |
| ADP24 | Audio description and Voice Over processing card | |
| DAS24 | 4 channel (2 x AES/EBU) digital audio mixing and shuffle module | |
| DIO24 | 4 channel digital audio sample rate converter, tracking (and offset) delay - ADD-ON card | |
| DIO48 | 8 channel digital audio (192kHz) sample rate converter, tracking (and offset) delay - ADD-ON card | |
| DIO88 | Universal triple mode, 16 channel I/O card for Quad Speed ADD-ON applications | |
| DLA41-43-44 | 8 channel (5.1/2.0) digital audio loudness control and upmixer/downmixer unit based on Linear Acoustic algorithms | |
| DLA42 | 8 channel (4x 2.0) digital audio loudness control unit based on Linear Acoustic algorithms | |
| DSF66 | Dual digital autio upmixer and downmixer based on SoundField® algorithms | |
| DVO48 | Voice Over card with Quad Speed ADD-ON bus | |
| Digital Video Processing | HCC05 | HD, SD YC and RGB color corrector |
| HFS05D-HFS05E-HFS05T | HD, SD frame synchronizer with audio embedding, de-embedding or smart audio handling | |
| 2GM100 | Dual channel VANC data (eg: OP47, SCTE104, TC, S2020 and S2016) analyzer for OSD applications | |
| HIM10 | HD, SD integrity checking/probe with audio and phase OSD bargraph insertion | |
| HDS05 | HD to SD down-converter with frame synchronizer | |
| HSU05 | HD up-converter with color corrector | |
| GXG200 | 3Gb/s, HD, SD high quality up/down/cross-converter/synchronizer with MAD technology | |
| HVD05 | HD up to 32 frames video delay | |
| Multiviewers | MGU100-MGG100 | SDI multiview building block with 8 inputs and up to 8 HD or 2 UHD (4K) SDI outputs with monitoring |
| MGU200-MGG200 | SDI multiview building block with 8 inputs and up to 8 HD or 2 UHD (4K) SDI outputs | |
| Miscellaneous | GPI16 | Universal GPI card with 10 GPI inputs and 16 GPI outputs |
| Delay and Storage | HLD100-120 | Solid state drive based HD-SDI long time delay unit with optional bug inserter |
| SLD100-120-200-220 | Solid state drive based SD-SDI long time delay with optional secound output and bug inserter | |
| ASI/DVB | ASI10 | Dual channel ASI/DVB monitor with 2x2 output switch and dual fan out per channel |
