Behind the greatest shows

With XS-VIA, large broadcast center and studio operations can benefit from EVS’ trademark reactivity and robustness, along with its unique Loop Recording technology. The server is optimized for the recording of multiple audio and video feeds, as well as instant control and multiple channels of playback operations. Offering higher UHD-4K channel density and supporting both SDI and IP environments, XS-VIA is designed to suit all your production needs.

Core benefits

  • Non-stop recording

    The reliable server engine with EVS’ Loop Recording technology means you never have to worry about down time or missed content.

  • Full flexibility for (U)HD deployments

    EVS has built the XS-VIA to operate in workflows that embrace any resolution whether that’s HD, Full-HD or UHD, with the expected EVS reliability and quality.

  • Protect your investments

    XS-VIA remains interoperable with existing EVS workflows, and benefits from evolutive services enabled by EVS’ VIA technology platform for a safer transition to the next generation of production infrastructures.

  • Optimized channel density & connectivity

    XS-VIA allows productions to extend to more UHD- 4K and 1080p operations and can be deployed seamlessly in both IP-connected and SDI environments.

  • Expandable internal storage

    XS-VIA makes storage expansion easy through a range of onboard and externally expandable options yielding up to 130+ hours in UHD-4K at 600Mbps.

  • Third party control

    XS-VIA streamlines production workflows thanks to its easy integration with third party tools and new media asset management systems

Key features

  • 12ch FHD and HD (720p, 1080i, 1080p)
  • 6ch UHD-4K (2160p) including integrated upscale from 1080p
  • 6ch Fill/Key (720p, 1080i, 1080p)
  • UHD-4K: XAVC-Intra, DNxHR
  • HD/FHD: XAVC-I, AVC-I, DNxHD or ProRes
  • PROXY : MJPEG or NEW - H.264
  • 10G Ethernet SFP+
  • 100G as an option
  • ST2022-6, ST2022-7, ST2022-8, ST2110 (-10, -20, -21, -30, -40)
  • NMOS IS-04, IS-05, EMBER+
  • PTP

1.5G-SDI, 3G-SDI and 12G-SDI selectable in software settings

  • 192 uncompressed audio tracks
  • Embedded, AES and MADI support
  • Internal storage of 18TB
  • Expandable to 54TB
  • Recording capacity of up to 130 hours of UHD-4K
  • Hot swap storage
  • EVS XNet (3G-SDTI)
  • EVS XNet-VIA (10Gbps Ethernet-IP)
  • Dual 10G media sharing network
  • Redundant 1G management LAN ports
  • 2 external inputs
  • 4 individual outputs
  • Tally support
  • 16 different layouts
  • Conversion from HDR to SDR
IP native 10G ethernet SFP connectors
IP native 10G ethernet SFP connectors

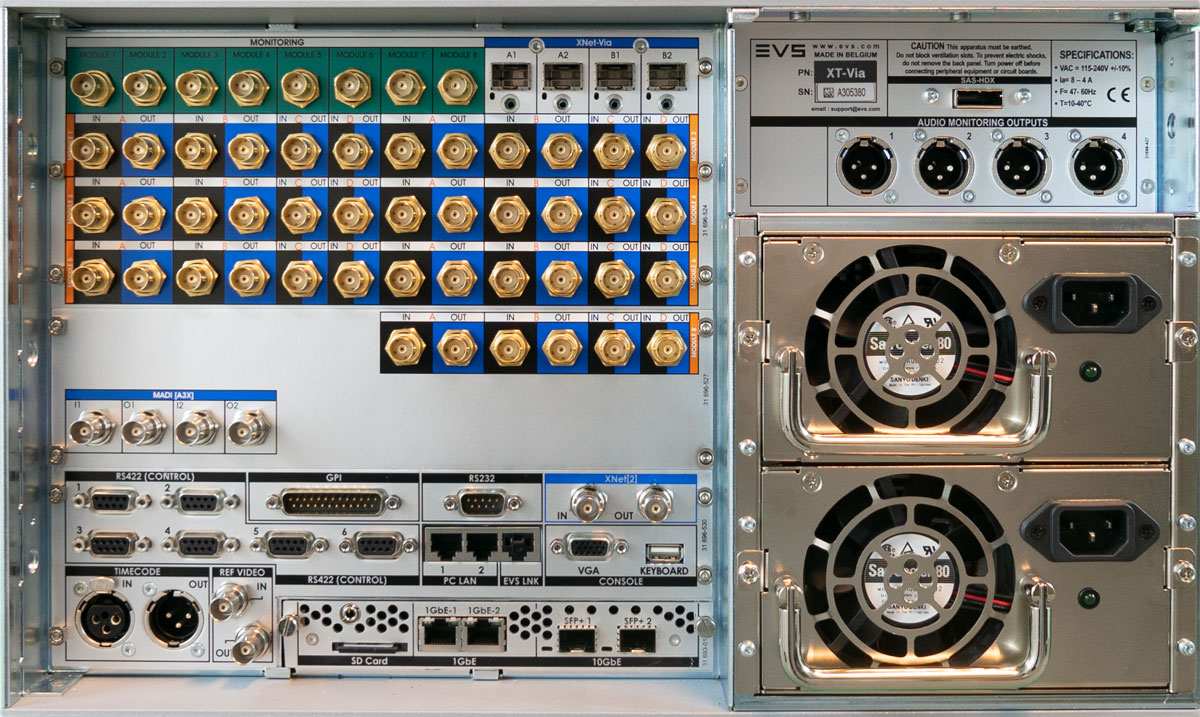

XS-VIA backpanel
XS-VIA backpanel
